8ft Wood Veneer Peeling lathe

Model No.︰


Brand Name︰


Country of Origin︰


Share on:

Product Description

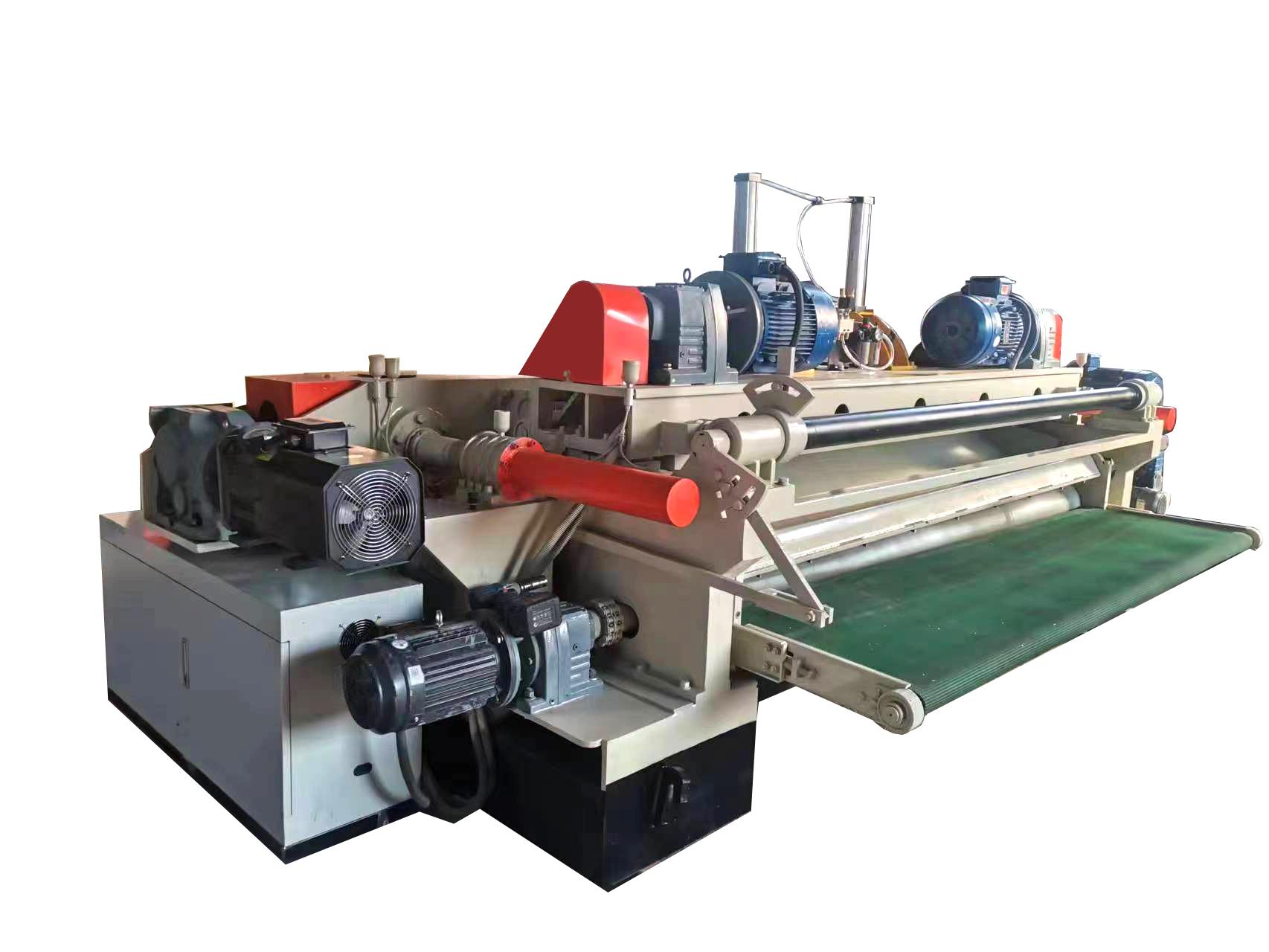

                  8ft spindleless peeling lathe machine

(  TWO-IN-ONE Veneer peeling and CUTTING Machine )


1. The size of log (Diameter* Length)(mm):        Φ500×2600

2. End peeling minimum diameter of log(mm):  Φ50

3. Maximum limit of blade bed-plate (mm):        500

4. Veneer’s thickness(mm):                             0.3~6

5. The size of  blade (Length * Width* Thickness)(mm): 2700×160×12.7

6. Peeling speed (m / min):                             36

7. Motor and power:                                      26.7KW

8. Overall dimension(Length * Width* Height): 5200×2000×1780mm

9. Weight (kg):                                                     about 7000

Product Image
